Electronic capability has improved in every way, bar one: the form factor of electronics today still mostly consists of components on circuit boards packaged in a box.
RELATED: 3D electronics enables greater integration, says IDTechEx
The race to faster, smaller and more capable devices leaves an open opportunity for product designers: matching the human machine interfaces of electronics to the real world, whether 3D, flexible or stretchable.
A $4.3bn 3D electronics market opportunity
3D electronics is ironically a relatively old ‘embryonic’ technology. The IDTechEx report “3D Electronics/Additive Electronics 2024-2034: Technologies, Players, and Markets” forecasts the opportunity being $4.3 Billion in 2034, from a humble start of 3D printed antennas and capacitive touch switches.

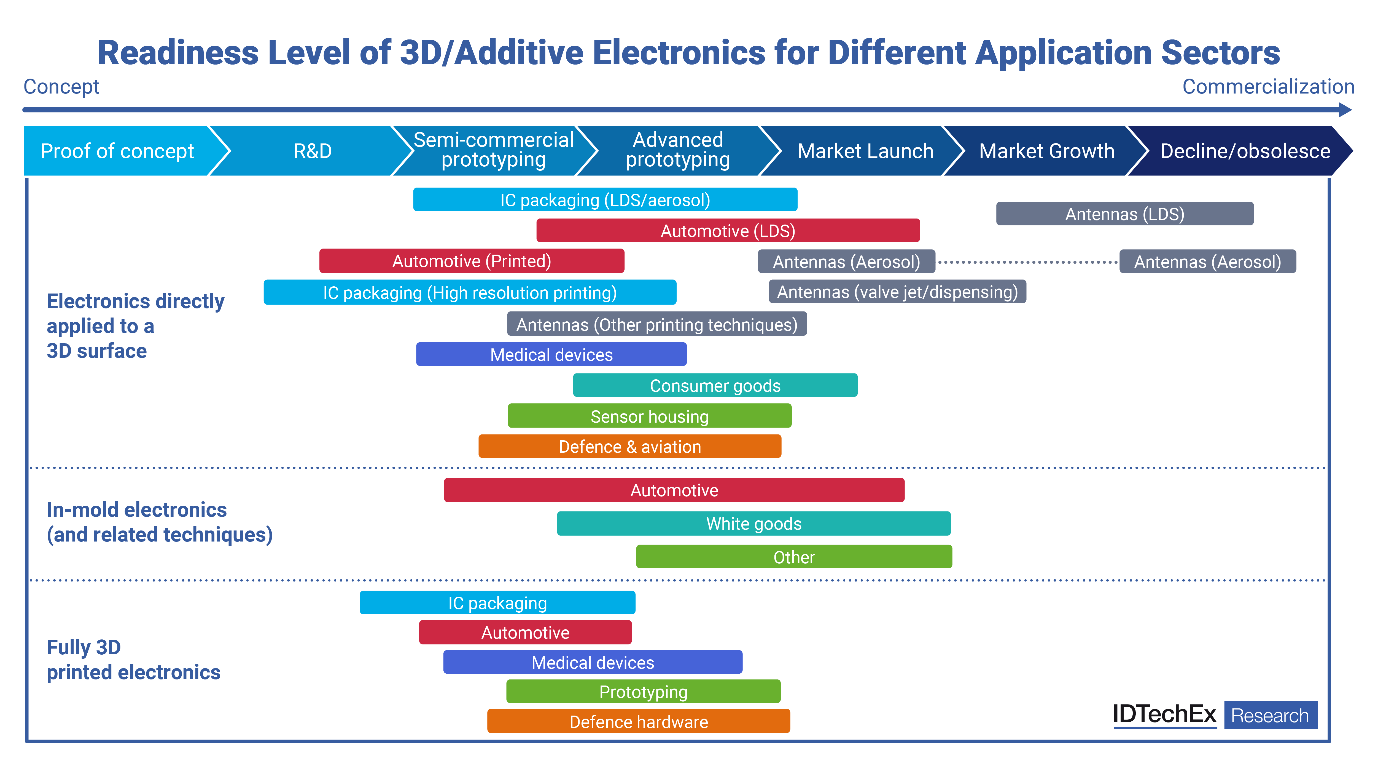

In the report, IDTechEx assesses many different manufacturing technologies that are at different points of maturity and which can be used to create 3D electronics.
Source: IDTechEx report 3D Electronics/Additive Electronics 2024-2034: Technologies, Players, and Markets
One such technology is In-mold electronics (IME), where conductive traces are printed and components mounted prior to thermoforming the flat substrate into a 3D part.
IME – leveraging a mature manufacturing technology
The IME manufacturing process can be regarded as an extension of the well-established in-mold decorating (IMD) process, in which thermoforming plastic with a decorative coating is converted to a 3D component via injection molding. Since IME is an evolution of an existing technique, much of the existing process knowledge and equipment can be reused, although there is a reasonable learning curve.
IME outlook
Based on interviews with leading IME developers, the analyst-curated IDTechEx report “In-Mold Electronics 2025-2035: Forecasts, Technologies, Markets”, reports that IME is still a few years away from widespread adoption, but the manufacturing ecosystem is largely in place. The next few years will be a moment of truth for the commercialization of the technology.
In January 2025 there are still only a handful of commercial product examples (such as a smoke/CO detector, smart lock, and controls on an industrial oven) that companies are willing to discuss publicly.
IME is being commercialized in a few consumer and industrial products ahead of what is anticipated to be the bigger mid-term opportunity: IME adoption in the automotive sector.
IME sees the light?
The initial focus was on IME parts to replace mechanical switches with capacitive switches, particularly for automotive (dashboard switches). However, this came at a time where discrete switches in cars were being transitioned by a number of car makers to controls via touch screen displays instead.
The past few years has seen a ramp-up of activity for IME with embedded lighting for interior lighting in vehicles. The main benefits that appeal to the automotive sector is the physical volume reduction and weight reduction, with one company interviewed by IDTechEx citing that they found that the thinnest they could achieve the functionality with conventional parts was 28mm, but with IME they could reduce that to just 8mm.
Less power while still meeting the application requirements
Further, unlike edge-lit diffused LED lighting panels, IME parts with embedded lighting do not have a bezel because the LEDs can be positioned closer to the light output, and therefore the LED count can be reduced. This means that the panel also requires less power while still meeting the application requirements.
According to companies which IDTechEx interviewed for the report, IME is currently being assessed for a number of automotive applications, and if successful these may see adoption around 2027/2028.
Based on the latest forecast model by IDTechEx, which has tracked the sector for over six years, the IME market (a subset of 3D electronics), is expected to have a value of $974 million in 2035.
An opportunity unrecognized by product designers?
3D electronics could enable an exceptional point of differentiation, if only it was seen as such rather than the competitive focus usually being on what is behind the surface, not on it. It’s an open opportunity for a product designer to take the lead.
